PIN2MATCH®
Versatile Matching Solutions For Stripes And Plaid Garments
Fabric Saving 4% to 8%
Process cost saving 15% to 30%

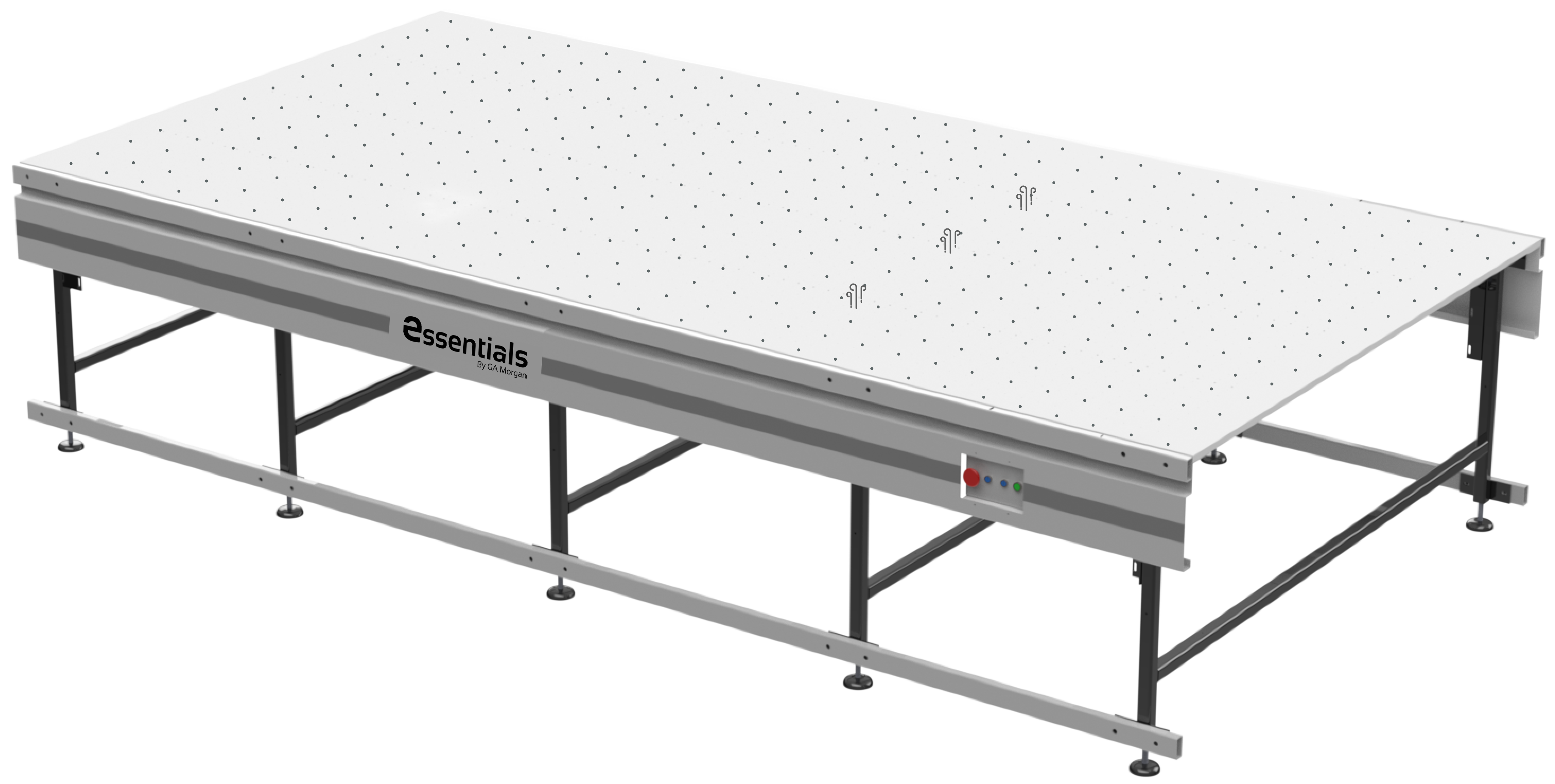

PinUpTable
Essentials PinUpTable is a modern solution from managing the bowing problems in checks and plaid fabric to stacking multiple plies. With essentials PinUpTable, bulk producing checks and plaid garments is no more a problem.

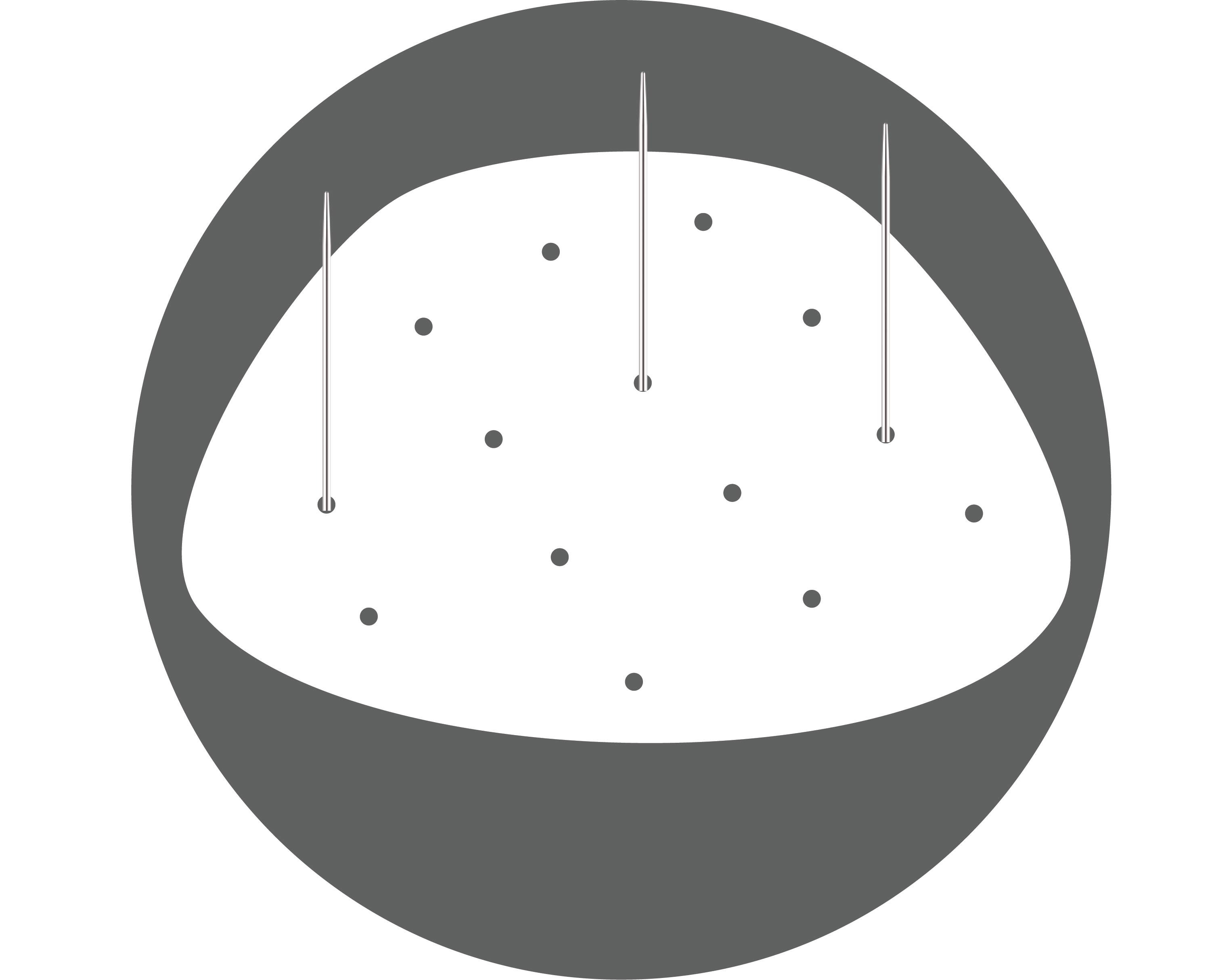

Special needles with ball point tip to hold the fabric together
Airblow option throughout the surface to easily move the fabric
Standard length of 4 meter with optional width of 1.6 / 1.8 / 2.2 meter
Strong built quality
Control for needle movement (upward/downward) mechanism

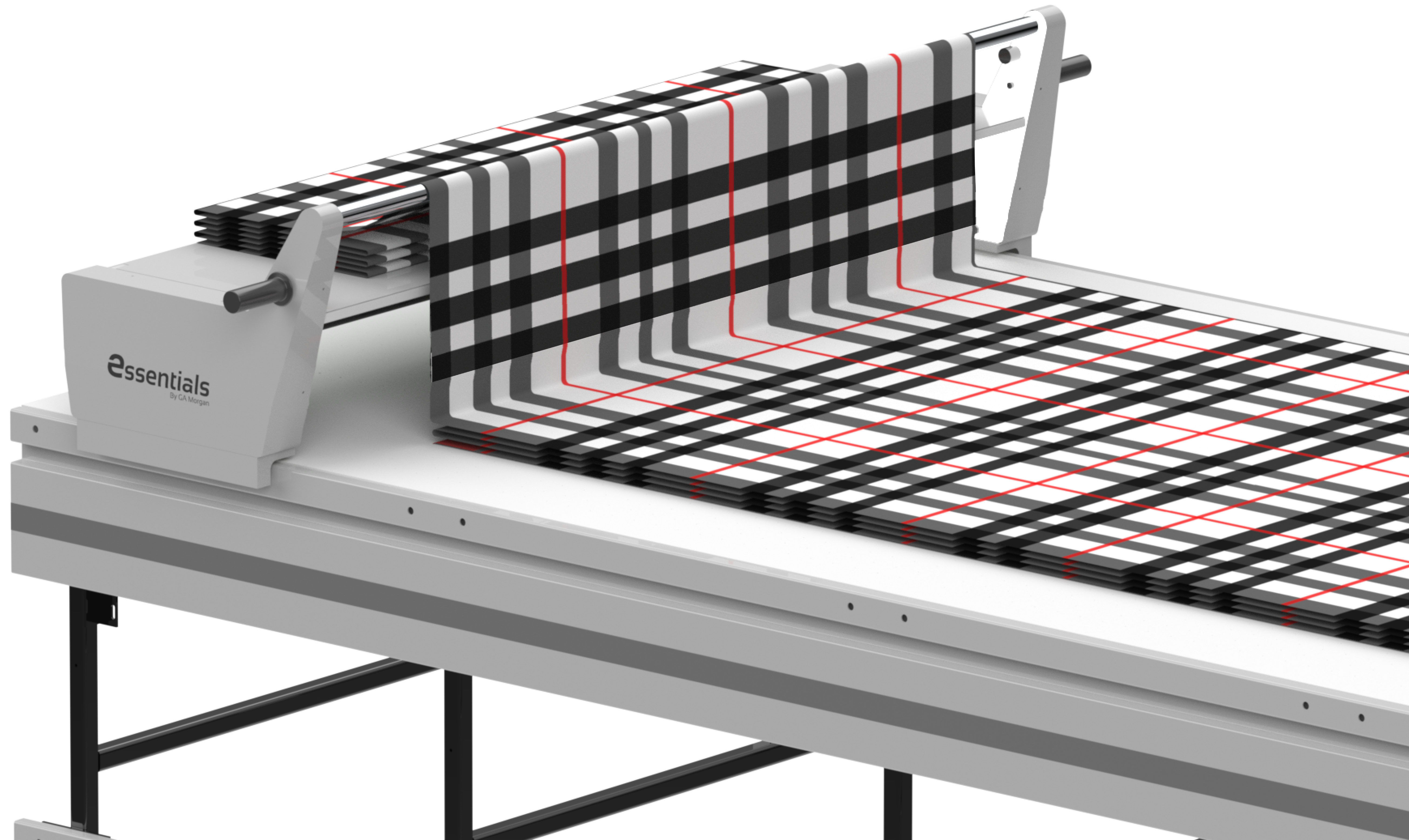

Feeder
A simple yet effective mechanism to spread the plaid fabric on Pin up table. Empowering the operator to carryout pinning operation without damaging the fabric by activated pins. This allows the operator to get the fabric on hand easily and allow them to focus more on the Pinning Operation and hence increasing the rate of Productivity.
Free rollers to manage the flow of fabric
Handle bar support to push the feeder effortlessly
Platform for flat folded fabric (also available for roll form fabric)
Ergonomical design for smoother operation

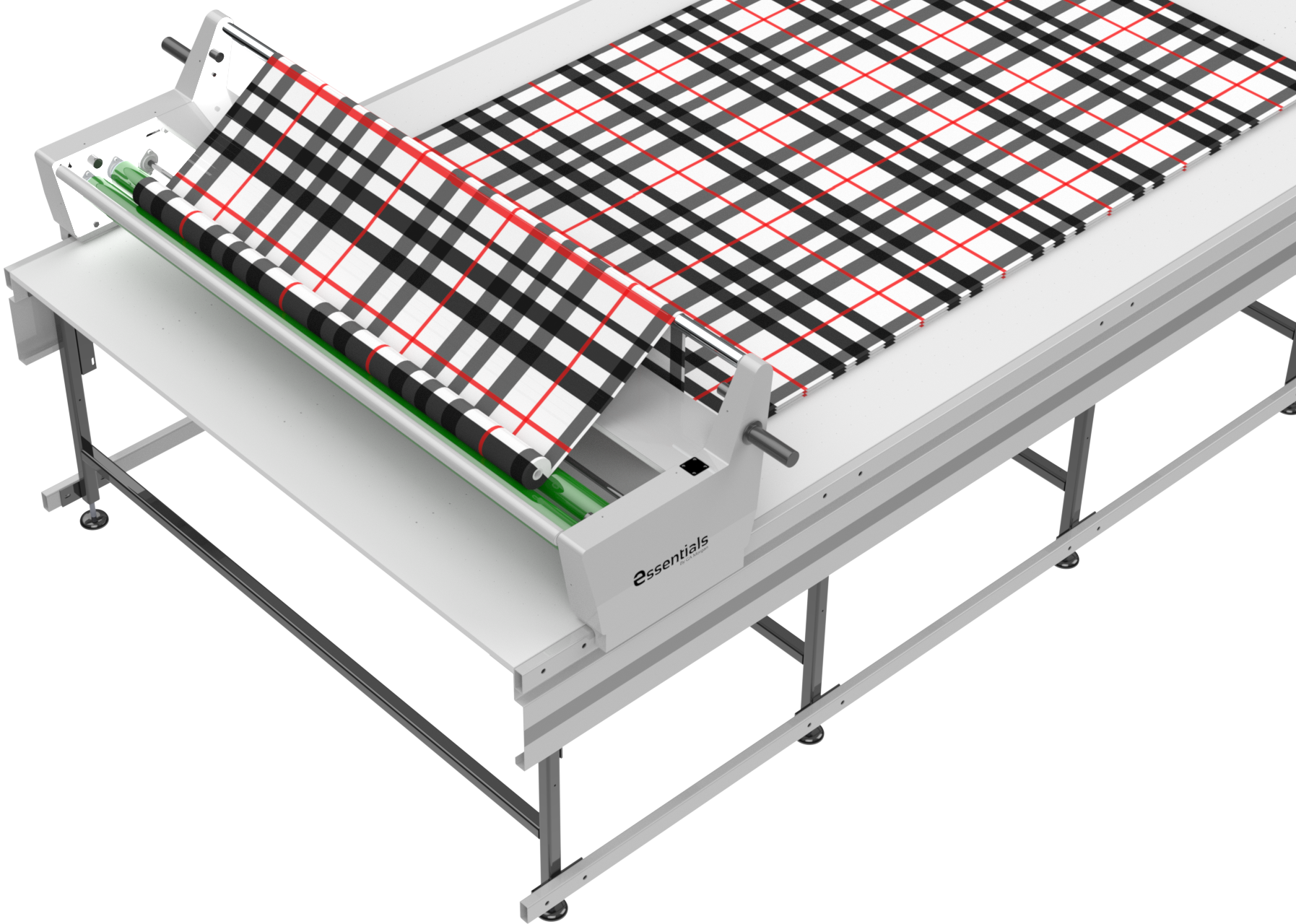

Feeder
(Roll loading option)
Apart from essentials feeder being user friendly for the operators, it is also flexible for the garment manufacturers and fabric suppliers as the challenge faced between roll form and flat-folded form can be handled with ease by essentials feeder with its detachable platform feature. The design of the feeder is in such a way that it allows the roll form of the fabric to sit precisely and unwinds smoothly by simply removing the platform. Thus, making this product more reliable, cost effective and robust.

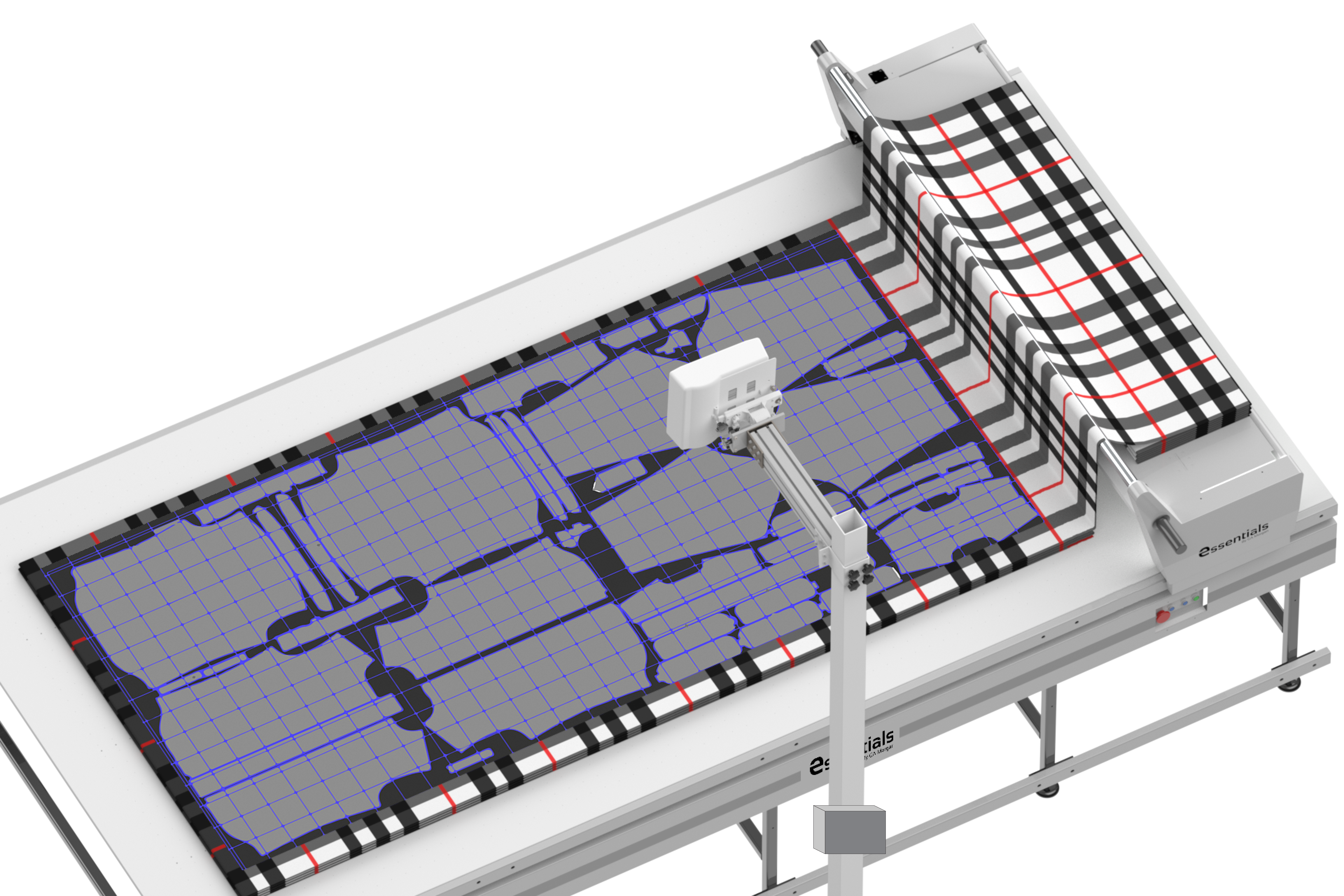

Projector + CPU
Industrial quality short throw projectors along with windows 10 industial PC helps to project the real scale of markers and fabric repeat lines on the top of Pin up Table. The Projector comes with necessary calibration and adjustment tools to project the images precisely.
Marker / patterns projection on real scale
Industrial projector used for more reliability
Adjustable projector stand (Altitude and Angle).
CPU - i3 processor, 4GB RAM, Nvidia GTX graphic card, Windows 10

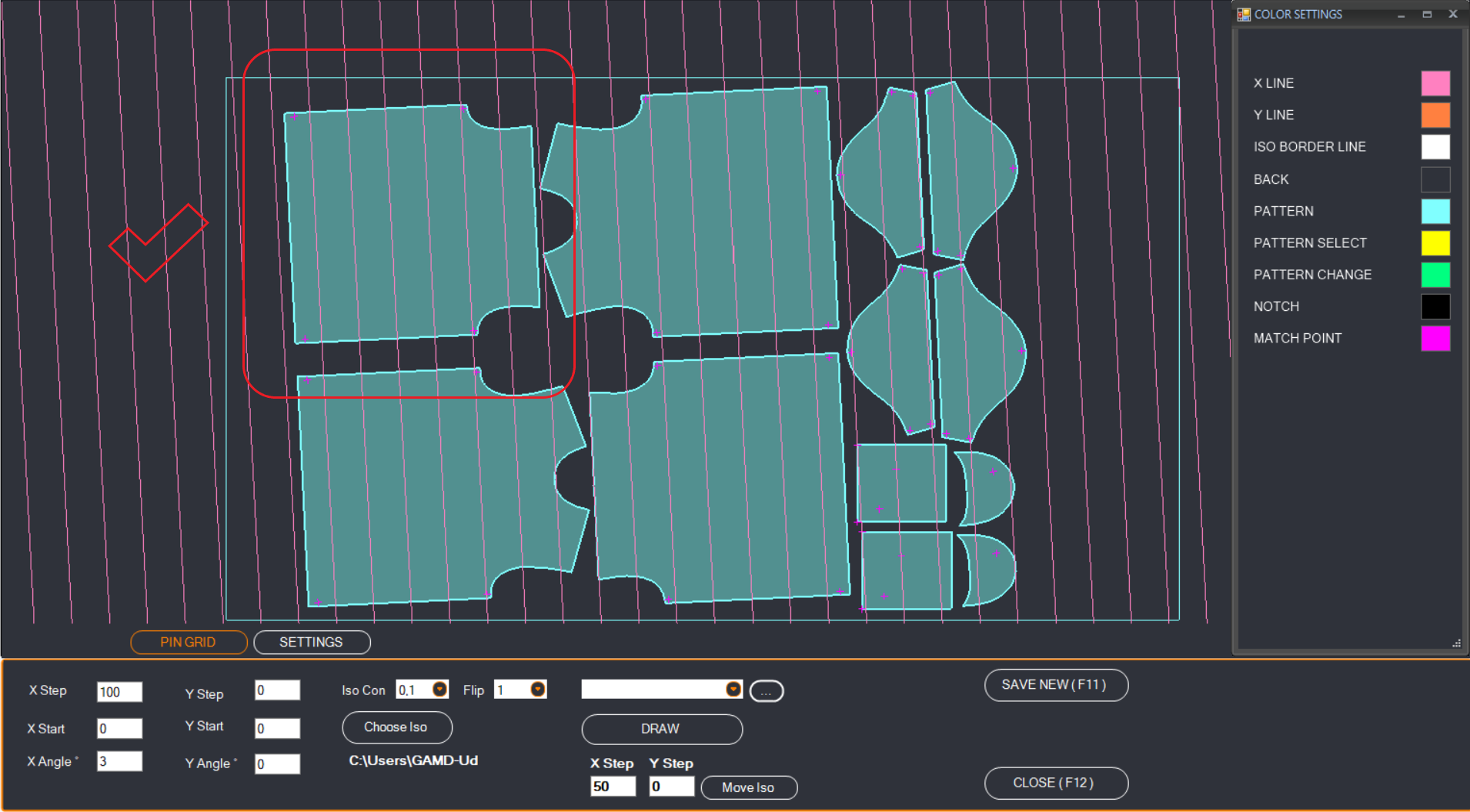

Visual Nest

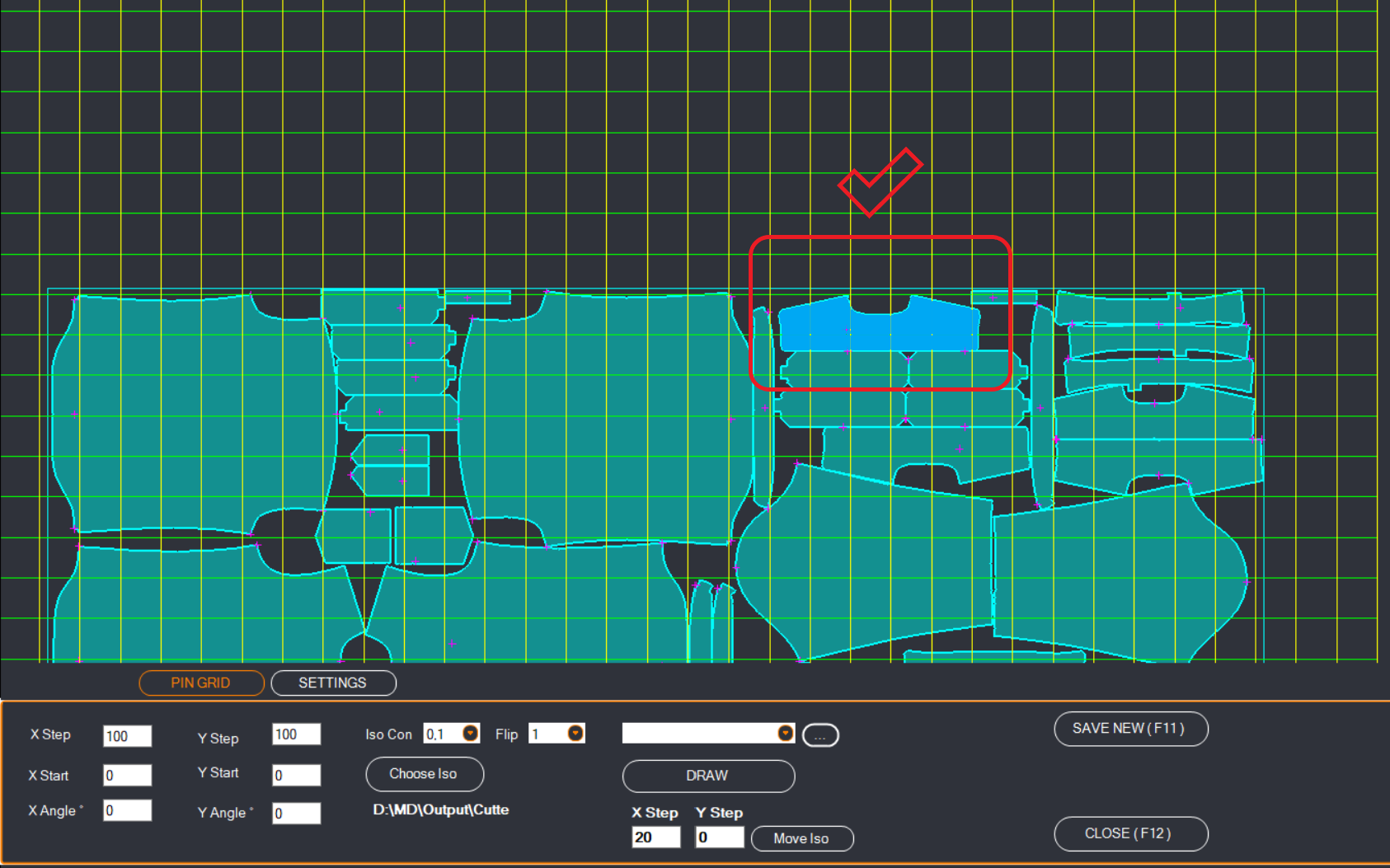

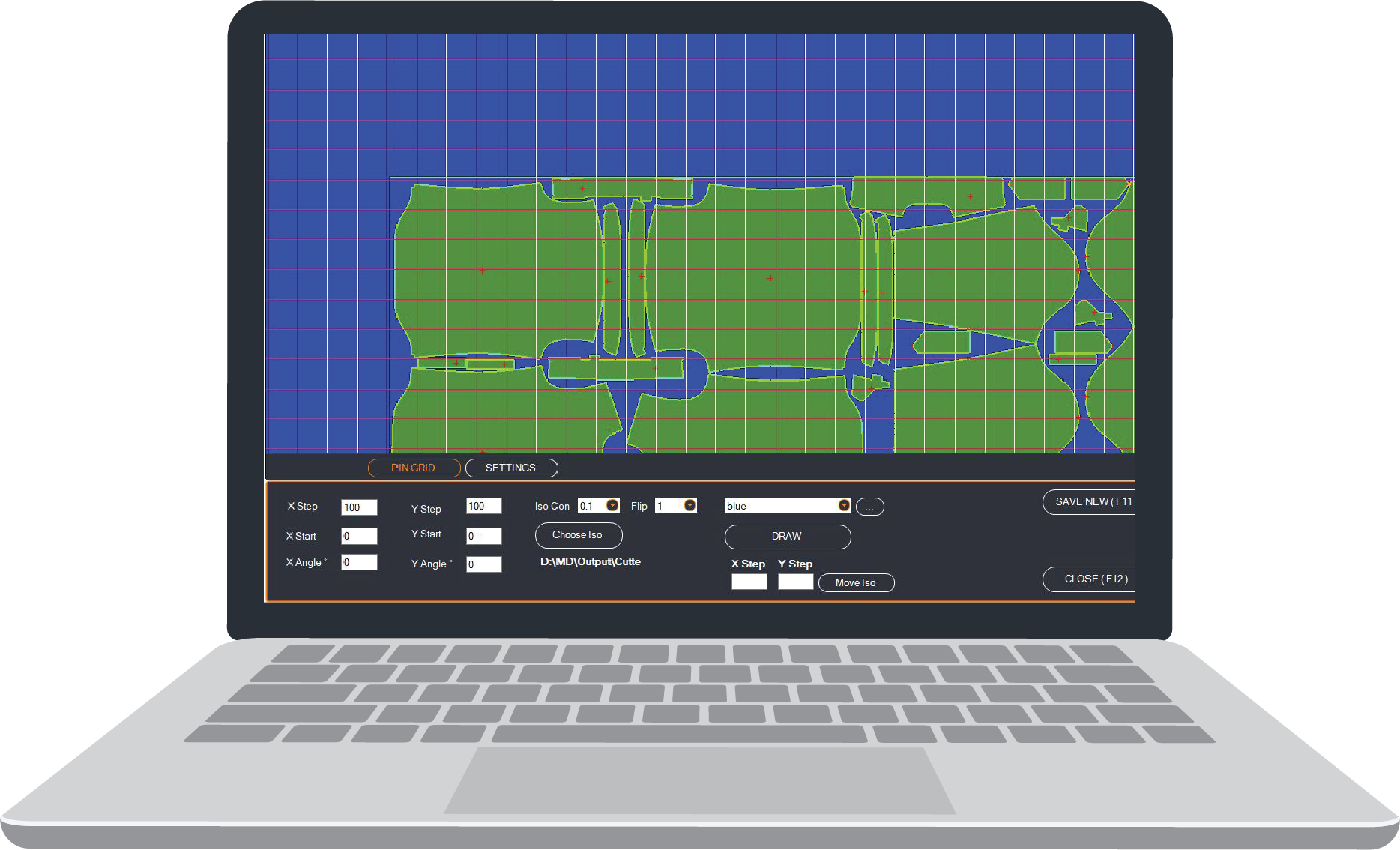

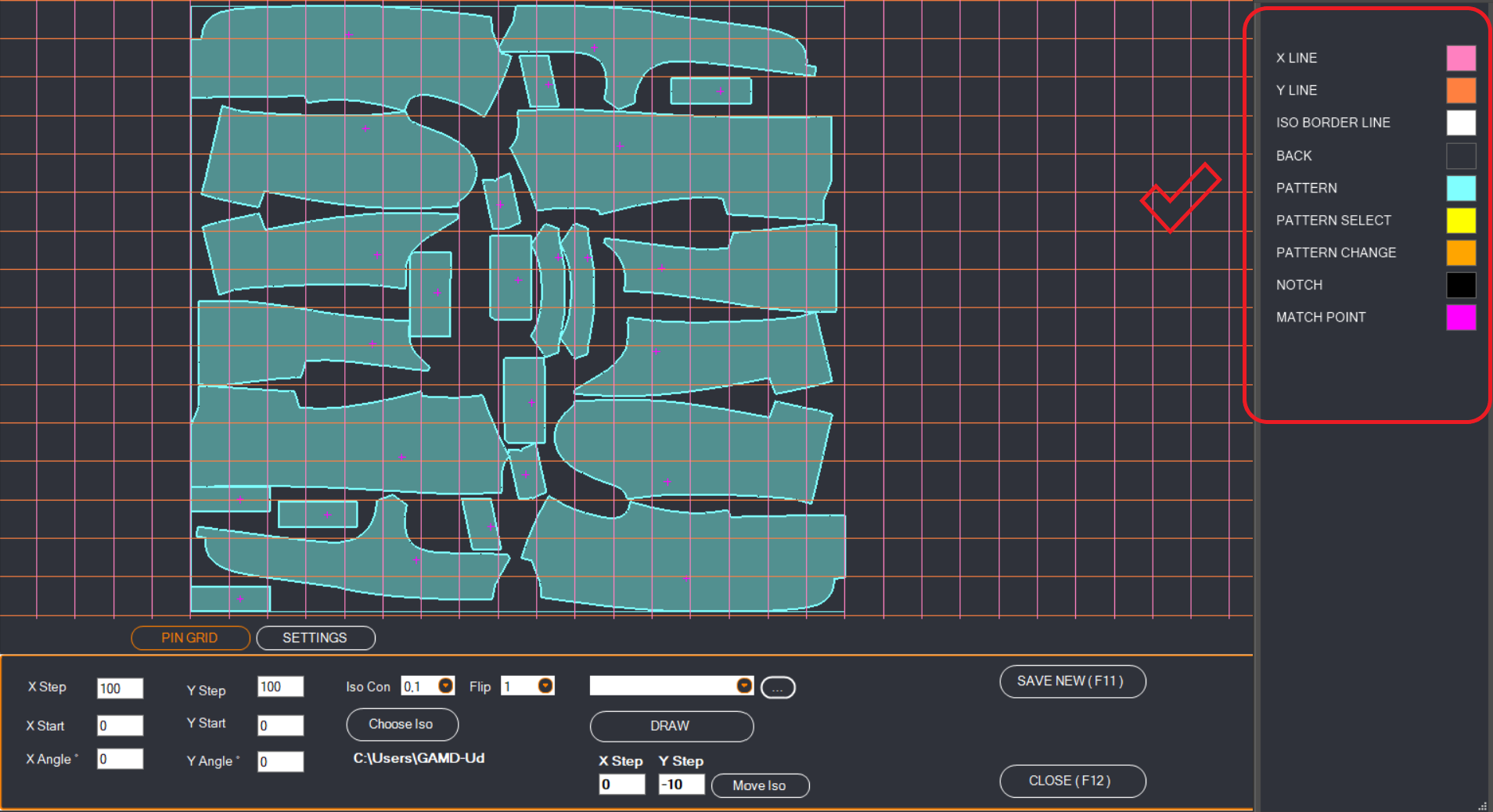

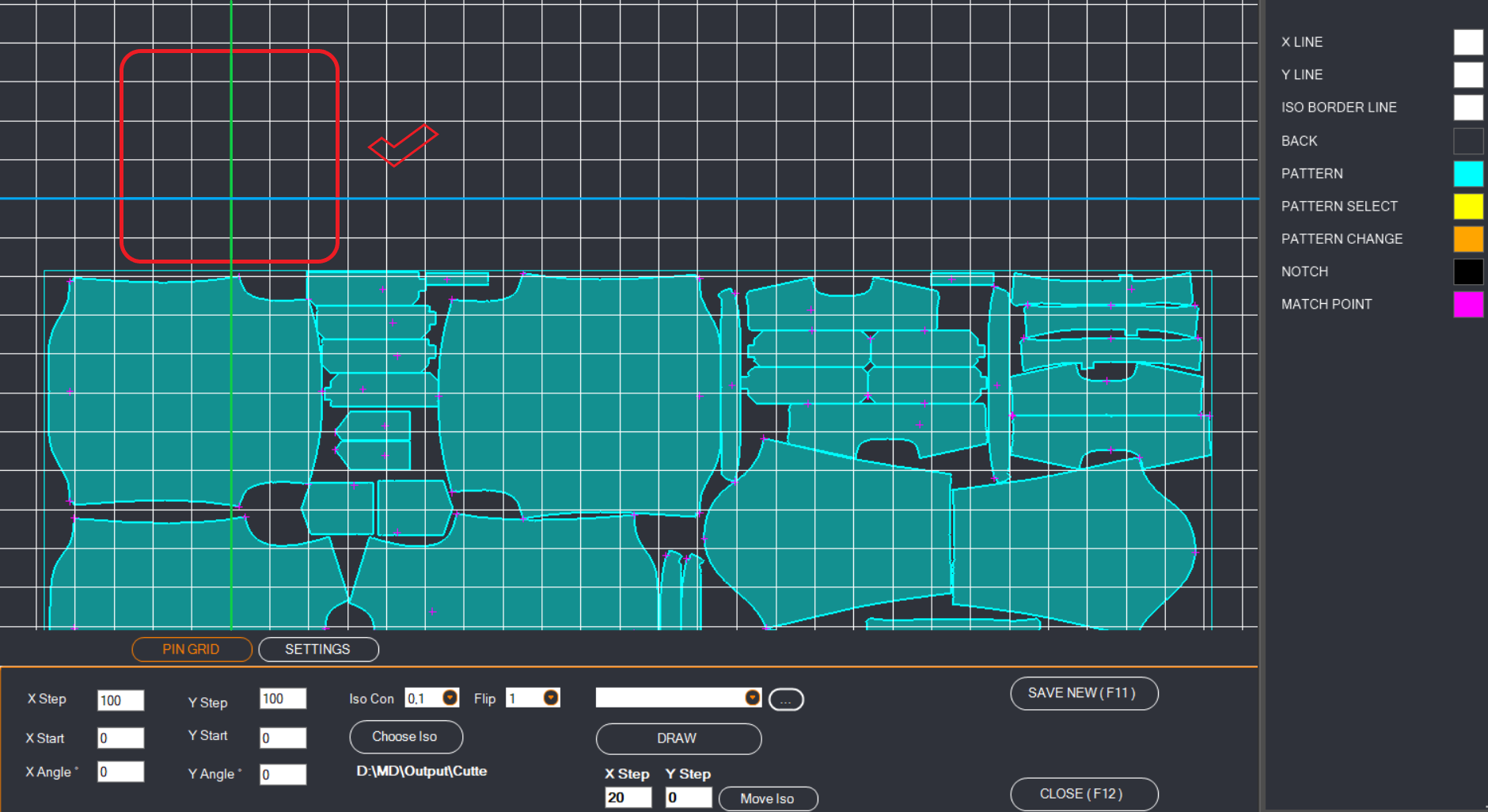

Visual Nest is the most practical and effective system for viewing and editing markers in real time, directly on the spreading table. It also guarantee the maximum compatibility with any existing installation of spreading and cutting plants and with any CAD-CAM system thanks to the use of the standard ISO format.
Possibility to modify the repetition and to move each individual line, in case of irregular repetition
Possibility to modify the repetition angle, to adapt to off grain fabric
Possibility to move each individual piece of the marker by mouse, for propoer matching
Possibility to rotate each individual piece of the marker by mouse, to follow off grain fabric

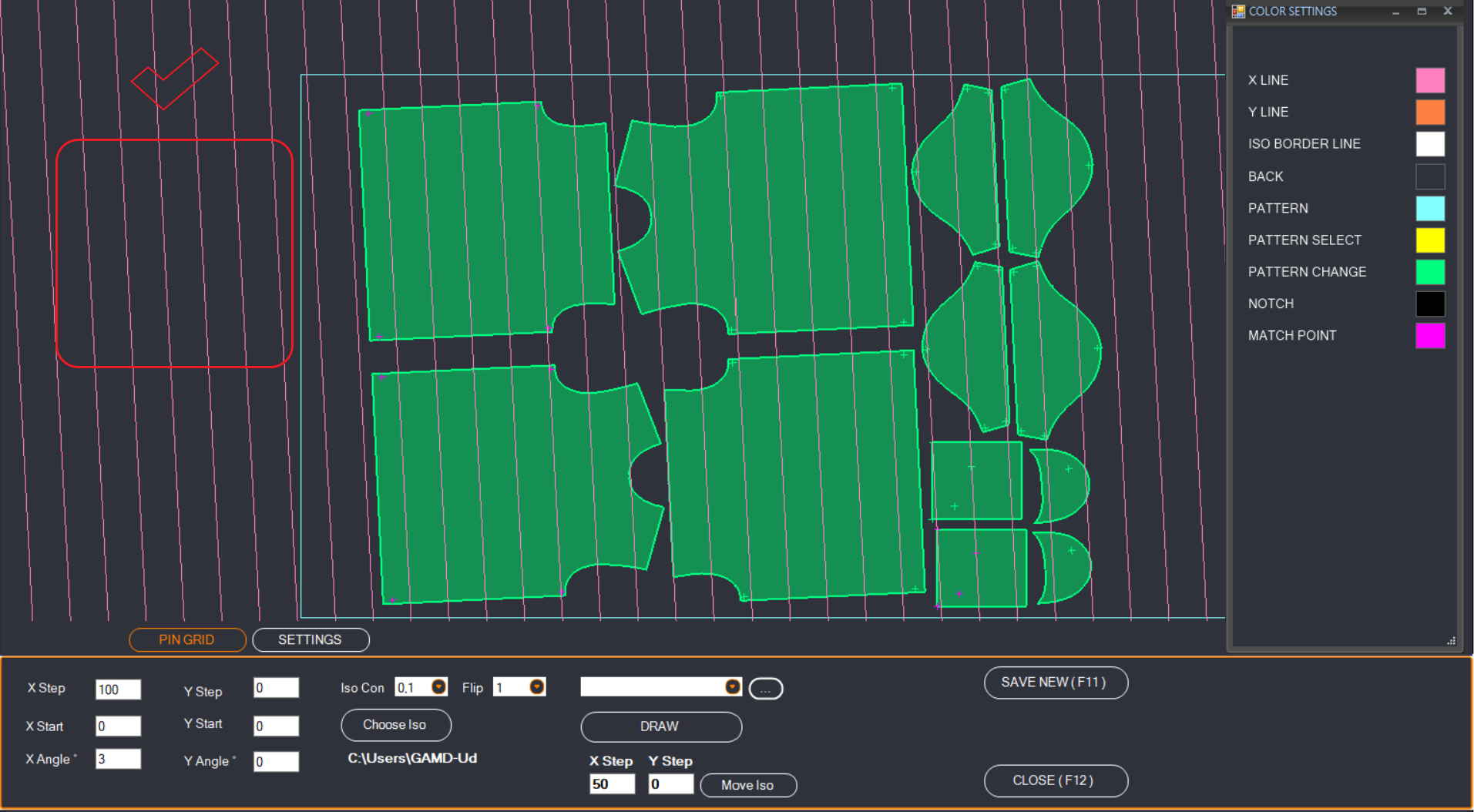

Possibility to customize the color combination to easily adapt to any type of fabric
Complete Solution

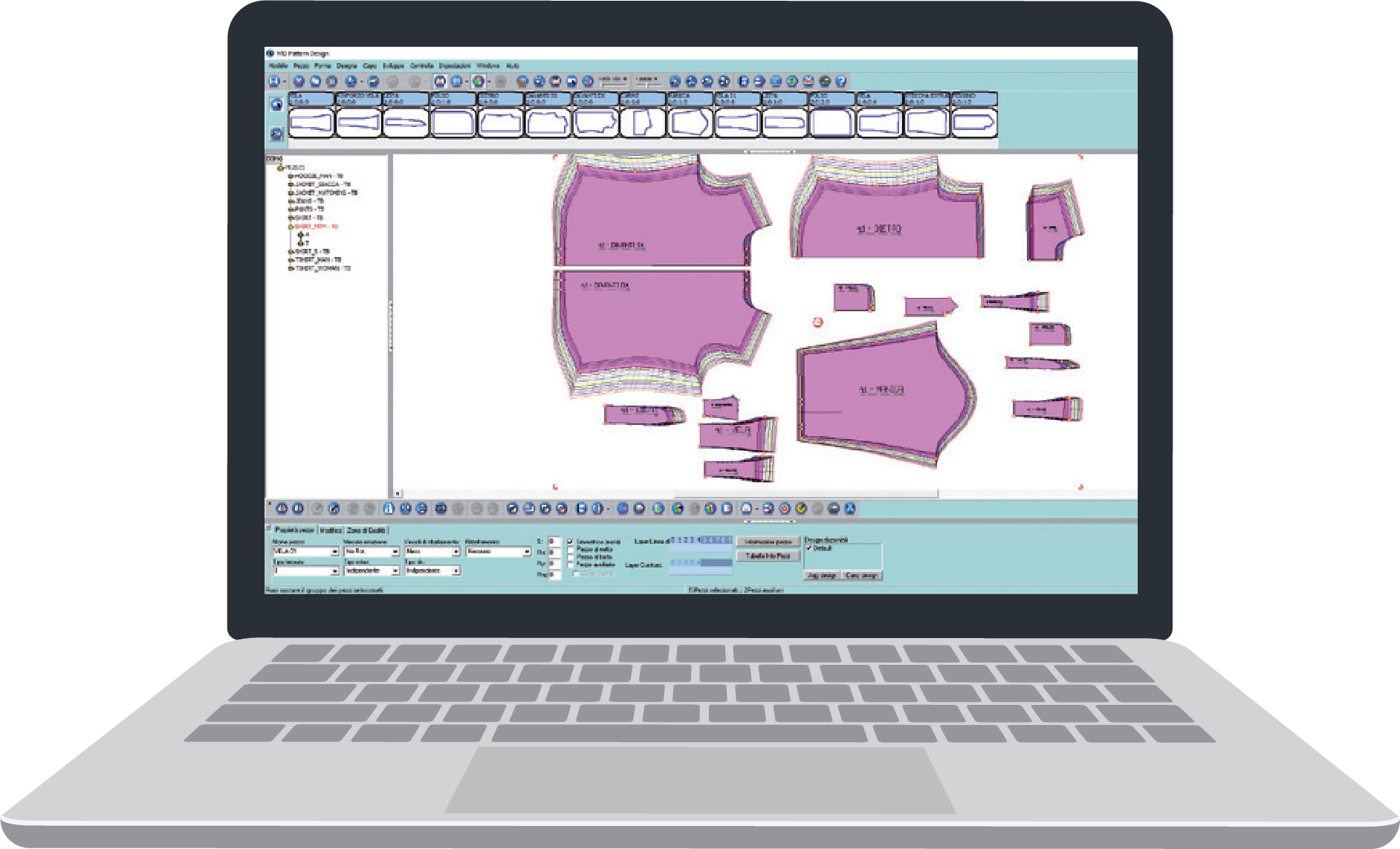

Morgan CAD (2D / 3D) for pattern construction

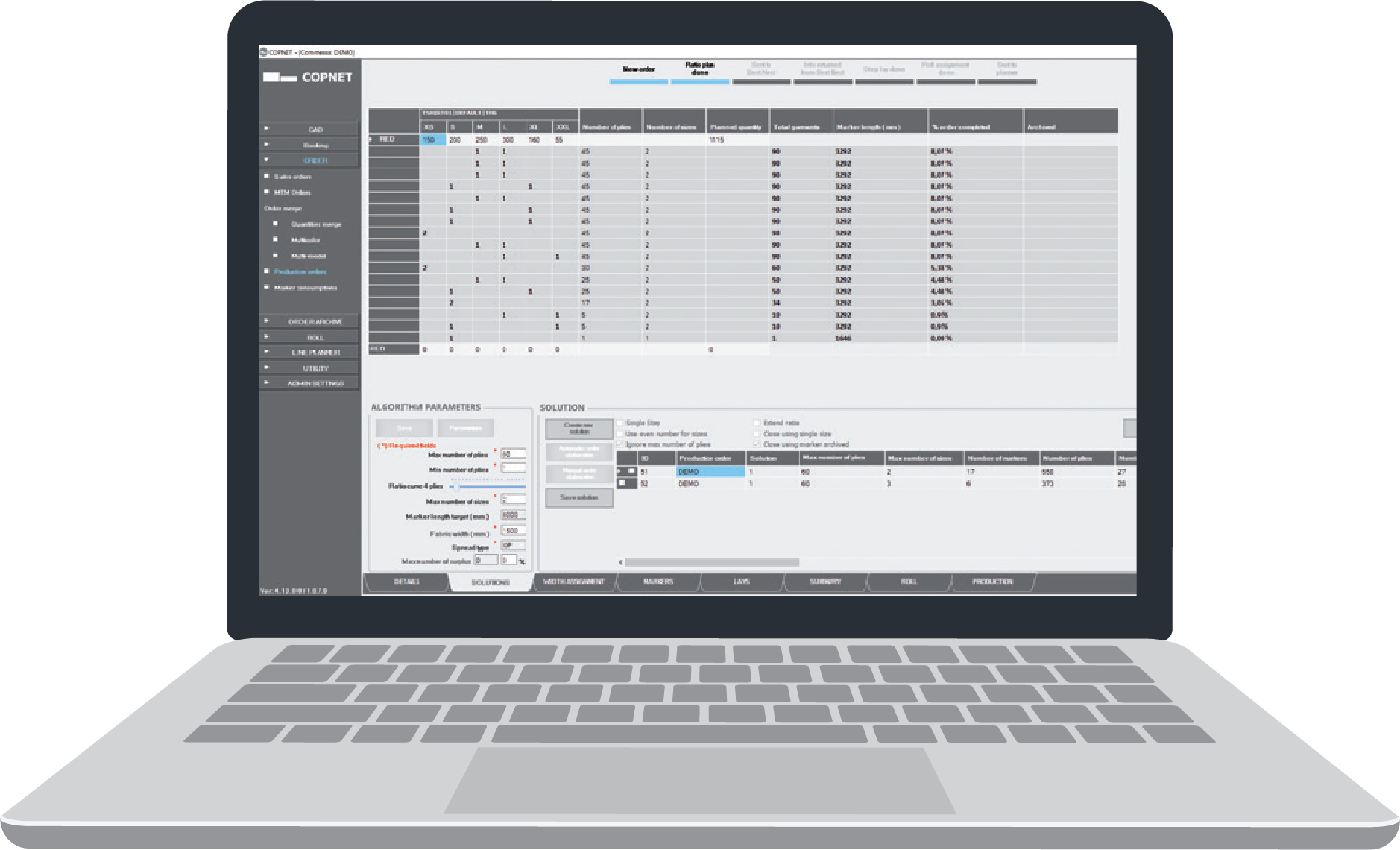

Morgan COP to plan the cutting sequence with roll management
Visual Nest software to view and edit markers in real time
Pinning table with feeder and projector for the pinning process by essentials

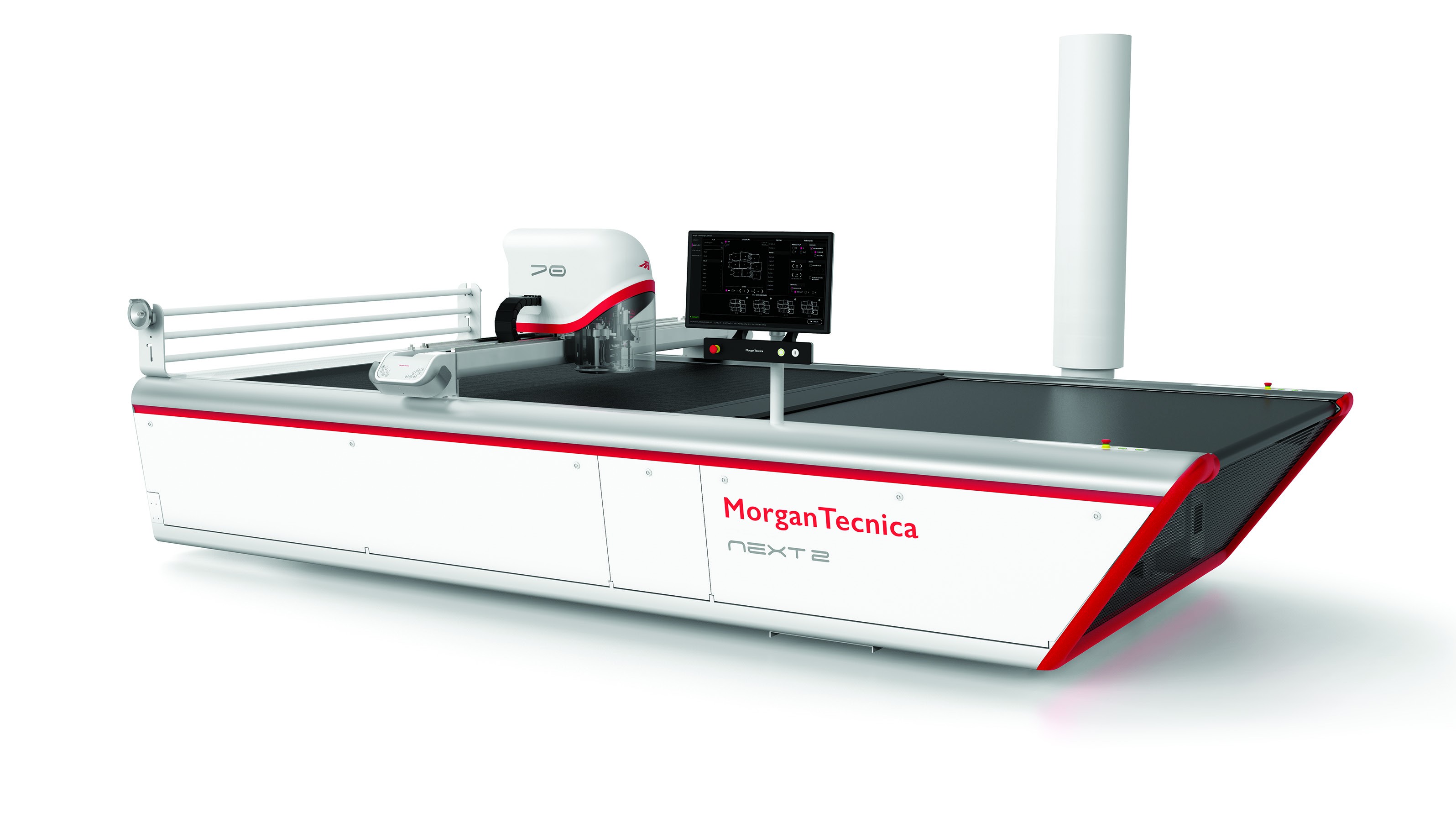

Auto cutter with single ply cutting and multi ply cutting options from Morgan Tecnica
Application
